项目背景

随着园区、工厂、大型楼宇智能化升级，移动巡检机器人成为安防体系重要设备。本项目为四轮安防巡逻机器人整机外观设计，基于四轮移动底盘结构，完成上装感知模块、交互区域与车身一体化造型开发，打造辨识度强、适配工业安防场景的巡检机器人。

核心挑战

  • 场景适配：设备需要适应厂区不平整路面，造型兼顾防护性，满足全天候户外巡检；
  • 结构约束：激光雷达、摄像头等感知模块需要合理布置，传感器视野不能被壳体遮挡；
  • 识别要求：外观要传递安防可靠感，警示视觉清晰，便于现场人员快速识别；
  • 生产落地：钣金外壳造型要简化折弯与开模难度，控制量产成本。

设计落地

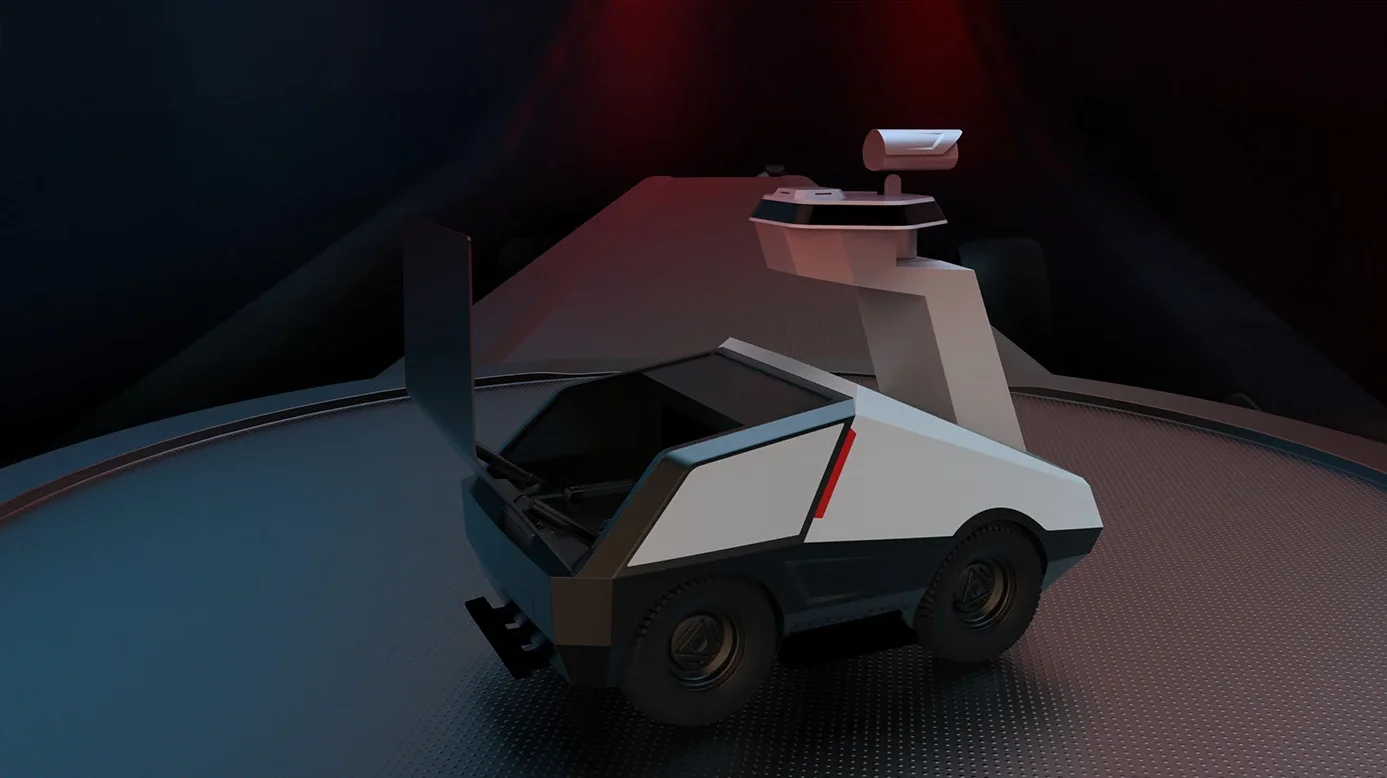

  1. 四轮底盘一体化车身造型 采用硬朗利落的车身轮廓，底部预留底盘运动余量，外壳具备防撞防护能力，适配园区、厂房复杂路面巡检。

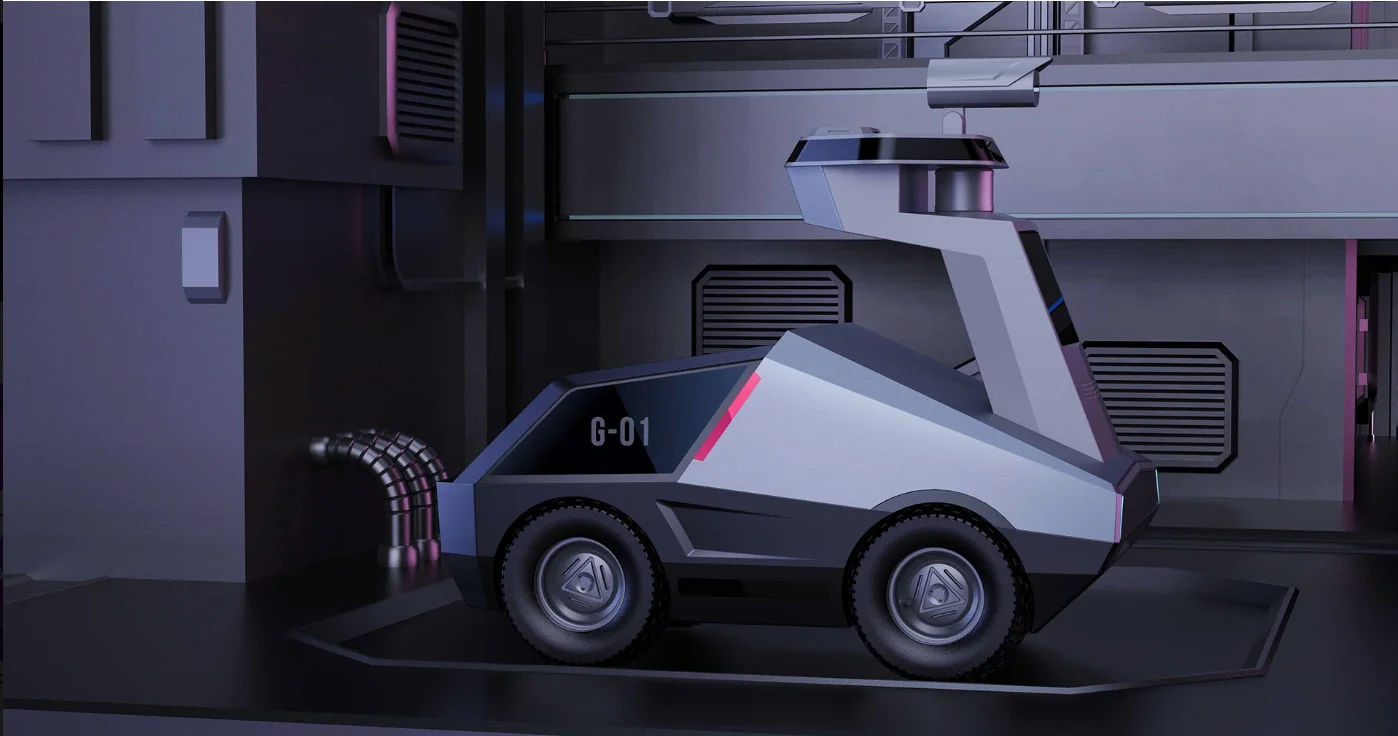

  2. 顶部感知模块集成设计 将摄像头、雷达感知单元集中布置于车顶，抬高探测高度，壳体做避挡造型，保障传感器无遮挡视野。

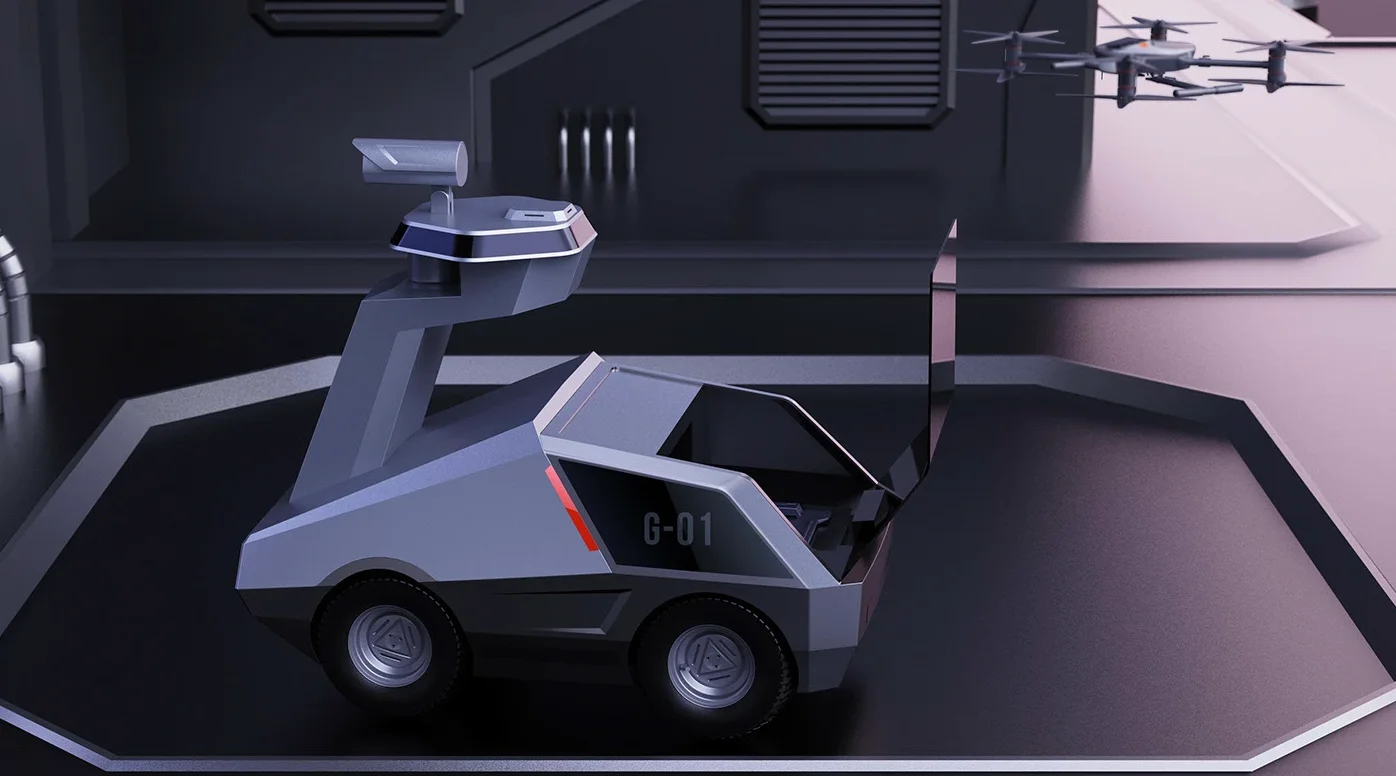

  3. 前部人机交互区域 车头设置交互面板区域，可集成指示灯、状态显示屏，方便人员查看设备运行状态。

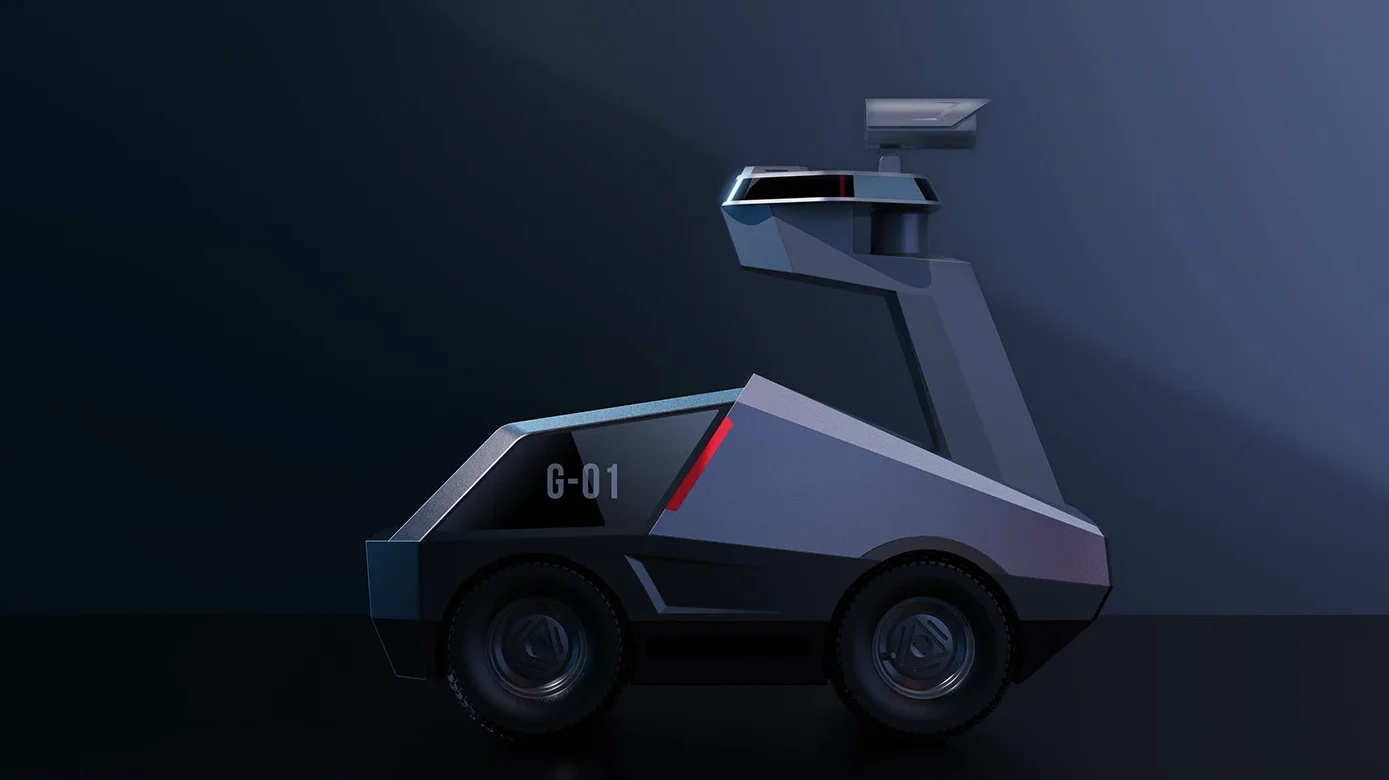

  4. 安防 CMF 视觉方案 主体采用白灰基调，搭配红色警示线条，强化安防设备属性；硬朗切面造型，传递稳定、可靠的工业安防气质。

用户收益

✅ 运营方：全天候自主巡检，外观警示识别度高，壳体抗碰撞，适配工厂、园区复杂环境； ✅ 机器人厂商：一体化外观方案，钣金工艺可落地，产品视觉差异化，便于系列化迭代； ✅ 现场人员：设备状态指示灯直观，辨识度高，提升安防巡检的整体专业形象。

Security Patrol Robot | Case Study

Project Background

With intelligent upgrading of parks, factories and large buildings, mobile inspection robots play a key role in security systems. This project delivers full exterior design for a 4-wheel security patrol robot. Based on the wheeled chassis, we integrate top sensing modules, front interaction area and body styling for industrial inspection scenarios.

Core Challenges

  • Environmental adaptability: The robot operates outdoors on uneven ground, requiring protective casing for all-weather tasks.
  • Sensor layout: LiDAR, cameras and sensing equipment must be arranged without visual obstruction from the shell.
  • Visual identity: The design needs to convey reliability, with clear warning graphics for on-site recognition.
  • Manufacturability: Sheet metal body must be easy to bend and fabricate while controlling production cost.

Design Execution

  1. Integrated body for four-wheel chassis Sharp, robust body geometry leaves enough clearance for chassis movement. The protective shell resists collision for factory and park terrain.
  2. Integrated top sensing module Cameras and LiDAR are mounted on top to maximize detection height. Shell contours avoid blocking sensor field of view.
  3. Front human-machine interaction zone Front panel reserved for status indicators and display screens for quick status check by staff.
  4. Security-focused CMF strategy White and grey main body accented with red warning strips. Hard-cut surfaces express stability and reliability for security equipment.

User Benefits

✅ Operators: 24/7 autonomous patrol, high visual recognizability and collision-resistant housing for industrial sites. ✅ Robot manufacturer: Production-ready sheet metal design, differentiated styling and scalable product family language. ✅ On-site staff: Clear status indication and recognizable appearance to improve professional security perception.
